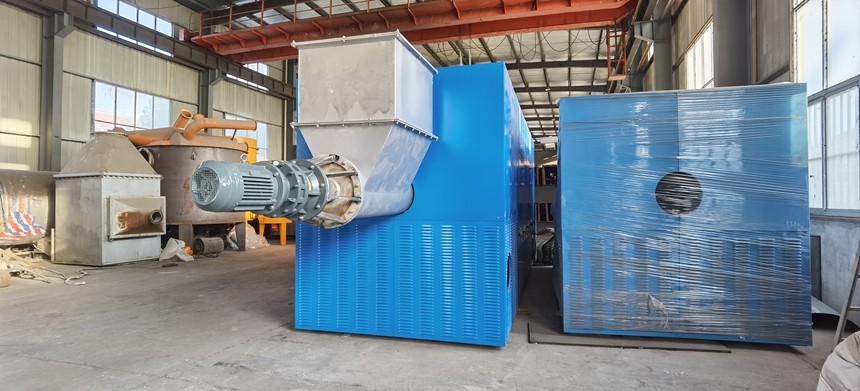

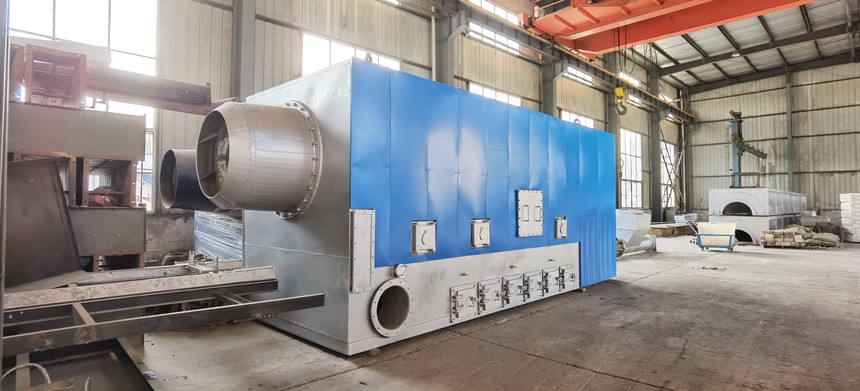

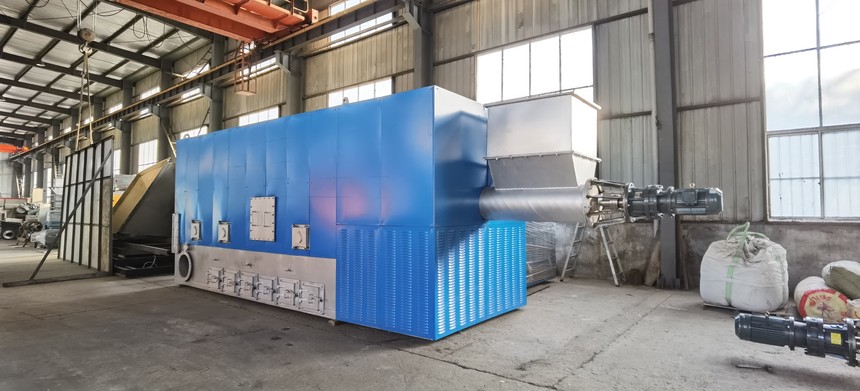

Biomass horizontal gasifier

收藏
  • 商品说明

1、生物质气化炉的主要参数

产品技术参数

气化炉型号

TYWSQHL-6

TYWSQHL-10

TYWSQHL-20

     配套锅炉

3T6T吨锅炉

8T12T吨锅炉

15T20T吨锅炉

炉体外形尺寸

(L×W×H)

4.175×2×2.4m

5×2×2.4m

6.5×2.4×2.7m

原料范围

生物质颗粒、竹片木片、建筑模板料、农林废弃物等碎状原料,压块原料

原料规格

块状长度<50mm;宽度<30mm;厚度<10mm;碎状1-30mm

原料含水率

<20%

原料消耗量

800-1500kg/h

2100-2800kg/h

4000-5000kg/h

产气量

1600-3000m3/h

4200-5600m3/h

8000-10000m3/h

可燃气热值

1200-1500Kcal/m3

可燃气出口温度

>600℃

装机功率

~18kw

~33.5kw

~36kw

设备占地面积

16×5㎡



2. Advantages of the equipment

1. Wide application of raw materials: in addition to all kinds of wood, all kinds of straw and other biomass lumps are applicable.

2, gas characteristics: high temperature pyrolysis gasification process, stable gas production, high calorific value, no emission pollution.

3, the production intensity is small, the continuous production is stable, the structure is simple, the fault treatment is easy, the input cost is low, the maintenance cost is low.

4, high safety degree: micro negative pressure process, no safety risks.

5, production process features: no sewage, no wood tar discharge.


3. Application industry

1, mainly used for supporting oil boiler, gas boiler, coal-fired chain boiler, heat conduction oil furnace and other heating equipment heating.

2, metal smelting, electroplating drying, food drying, furnace heating and other industries.


4各种燃料成本对比

能源类型

单位

燃料热值

kcal

单价

()

能耗

成本

(元/吨)

成本对比

KW

860

0.8

700

560

106%

0#柴油

Kg

10200

6.00

65

390

43%

天然气

m3

8500

3.5

80

280

基准

成型颗粒

Kg

4000

0.9

210

189

-33%

生物质木片

Kg

3800

0.5

250

125

-55%

Kg

5500

0.6

180

108

-61%

 (注:此表格仅供参考)







×
